What kind of meter do you have?

Smart meter

Your have a digital meter that sends us automatic updates.

SMETS1 Secure™ - older model installed before March 2018 with Secure™ logo

SMETS1 - older model installed before March 2018, no Secure™ logo

SMETS2- latest model installed sometime after March 2018.

Traditional meter

If your meter has an analogue display or dials

Jump to our FAQS

How to check

If you're already with us, you can check which meter you have on your online account dashboard. You can also find out how to take a manual reading by clicking 'how to read my meter' which will take you to the right part of this blog.

Log on to my account

Smart meter - older version

There are two different generations of smart meters – SMETS1, the earlier version, and SMETS2, the latest version.

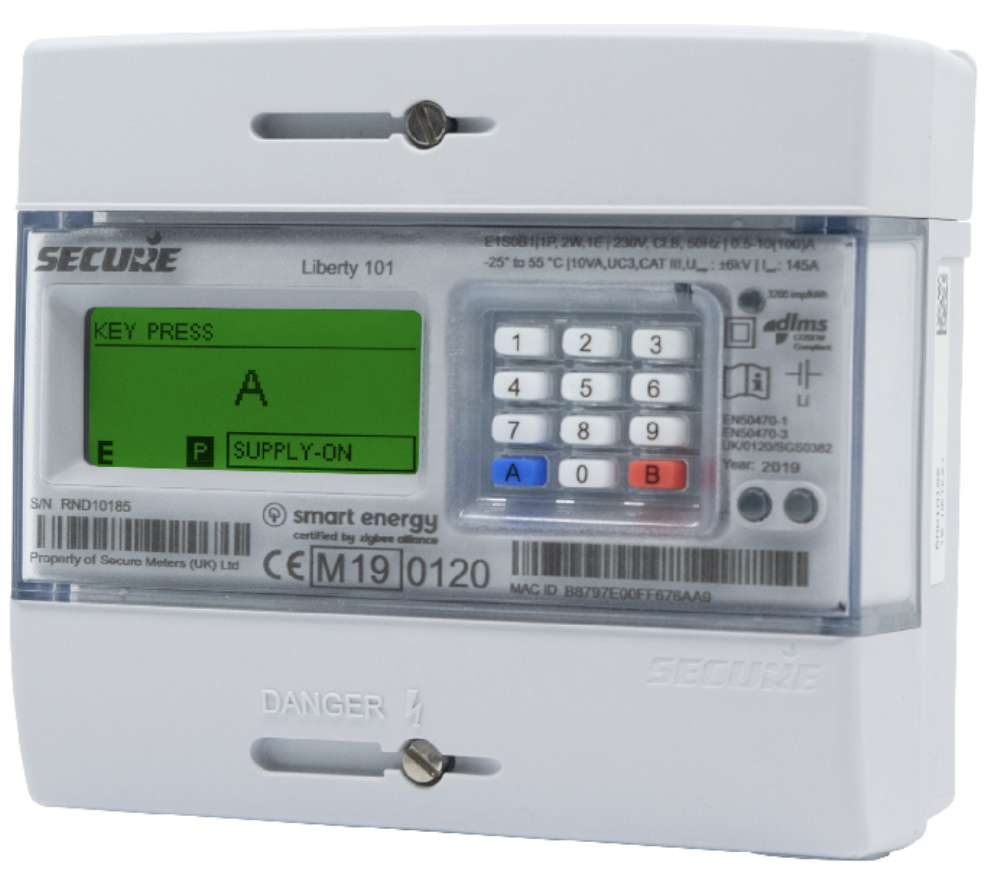

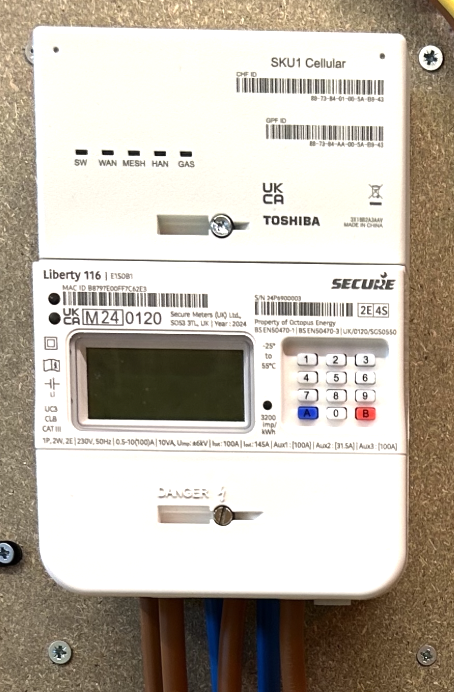

SMETS1 Secure™ first generation smart meter

Does your smart meter have a Secure™ logo on the front? These were some of the first smart meters we installed before March 2018. We can take automatic readings from all Secure™ SMETS1 meter readers - even if they were installed by a different supplier. But if you need to take a manual reading, here's how:

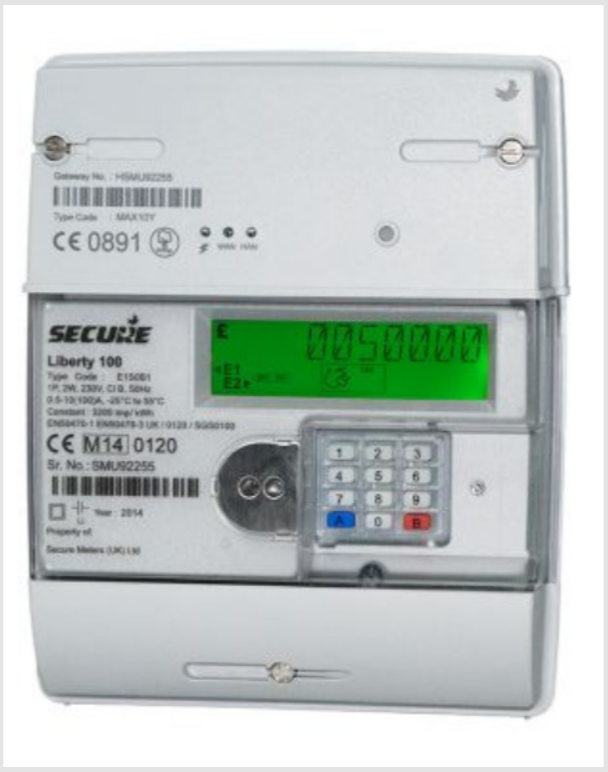

electricity smart meter

To take a meter reading on a standard electricity tariff:

  1. Press 6 on the keypad.
  2. You'll see the letters “IMP R01” appear on the screen.
  3. Wait a moment – then eight digits will appear, followed by “kWh” towards the bottom right of the screen.
  4. Take the first 7 digits – this is your reading.

To take a meter reading on an Economy 7 electricity tariff:

  1. Press 6 on the keypad four times.
  2. Wait a moment – your day/peak and night/ off-peak readings will show up on the screen one after the other, starting with off-peak.
  3. For your off-peak reading, you'll see “IMP R01” onscreen. A second later, you'll see your meter reading: eight digits, with “kWh” towards the bottom right of the screen.
  4. For your peak reading you'll see “IMP R02”. A second later, you'll see eight digits, with “kWh” towards the bottom right of the screen. You'll only need to take the first 7 digits when taking each of these readings (i.e. nothing after the decimal place).

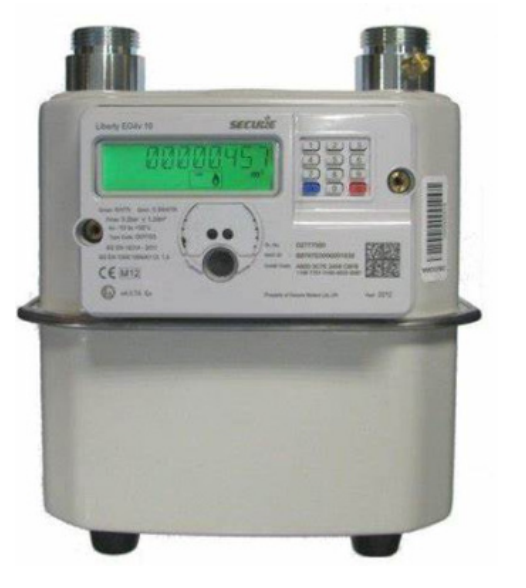

gas smart meter

For a smart gas meter, do the following:

  1. Press 9 on the keypad.
  2. The word “VOLUME” will show on the screen.
  3. Your gas reading, in cubic metres (m3) will appear.
  4. Take the first five digits as your reading.

To take an export reading from a Secure SMETS1 smart meter do the following:

  1. Press 9 on the keypad.
  2. The words "EXP kWh" will appear on the screen.
  3. Your reading will appear in kWh.
  4. Take the first 7 digits – this is your reading.

To take an export reading from a Secure SMETS1 smart meter with 2-rates (including Economy 7):

  1. Press 9 on the keypad until you see 'EXP kWh'
  2. Your reading will appear in kWh.
  3. Take the first 7 digits – this is your reading.

SMETS1 first generation smart meter

If you have a SMETS1 that was installed before 2018 but doesn't have a Secure™ logo on the front, we can't take automatic readings at the moment. We're working to change this, but in the meantime, here's how to take a manual reading:

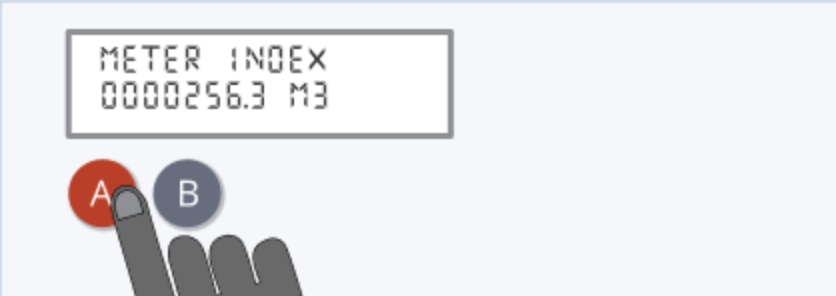

A finger clicking the A button

If your meter has A and B buttons:

  1. Press the A button.
  2. Keep on pressing this until you get to “TOTAL ACT IMPORT”.
  3. The number shown below this is your meter reading.

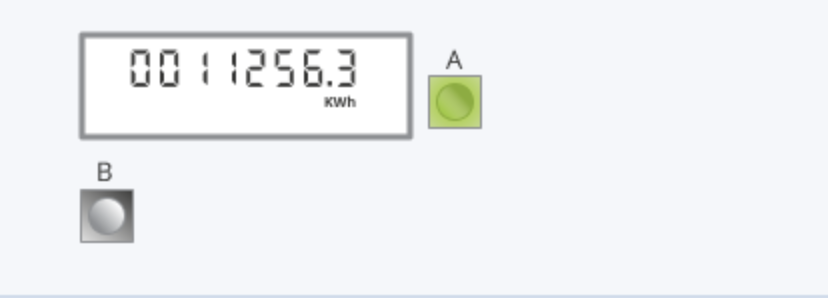

A meter with green a button and white b button

If your meter has a green A and a white B button:

  1. Press and hold the green A button for at least 2 seconds.
  2. Press A again and again to cycle through the displays.
  3. The first row of numbers you'll see is your meter reading.

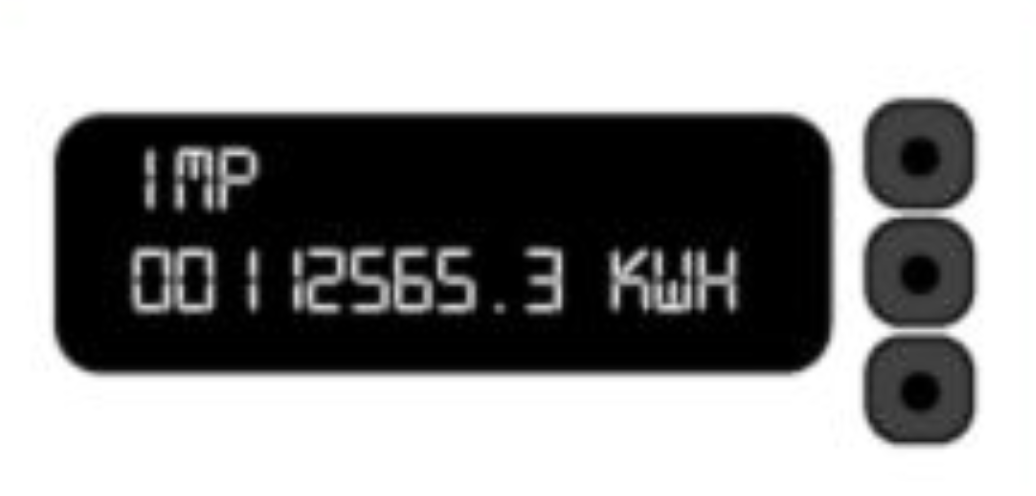

A smart meter display with three unmarked buttons

If your meter has three unmarked buttons:

  1. Press the middle button.
  2. The number shown below “IMP” is your meter reading.

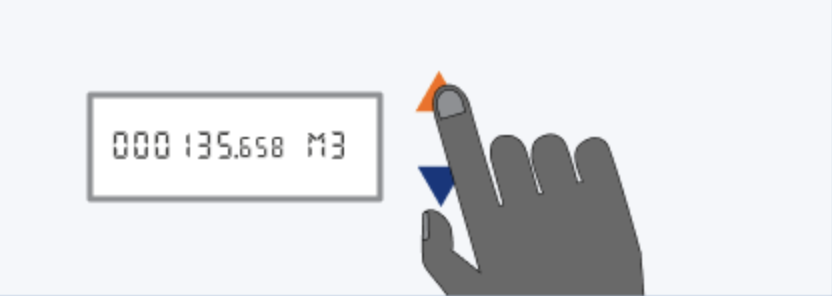

A smart meter display with a orange button and blue button

If your meter has an orange button and a blue button:

  1. Press the orange button.
  2. You'll see a row of numbers followed by “KWH”, this is your reading.

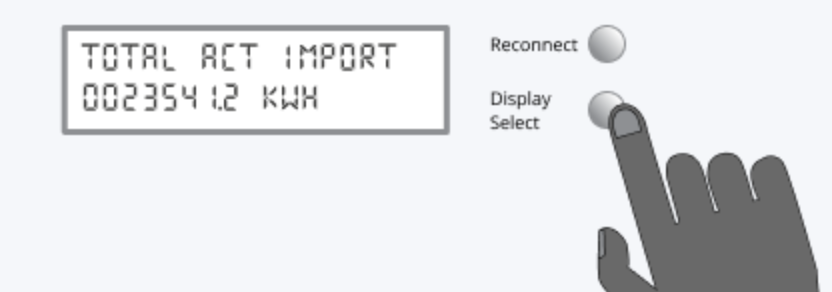

A smart meter display with two select buttons

If your meter has two buttons marked Reconnect and Display Select:

  1. Press the “Display” or “Display Select” button.
  2. Keep pressing until it scrolls through a number followed by kWh, this is your reading.

Smart meters - latest models

If you're switching to Octopus and already have a second generation (SMETS2) smart meter, we'll soon be able to connect to your meter and take readings automatically, but your very first reading needs to be sent manually.

There are a few different brands of SMETS2 meter – you'll be able to tell which one yours is based on the logo.

Below, we explain how to take a manual meter reading from the most common types of SMETS2 meters. If you aren't sure whether you have a SMETS2 meter, or think you have a SMETS2 meter but can't find it on this list, get in touch.

Aclara SMETS2 electricity Meter:

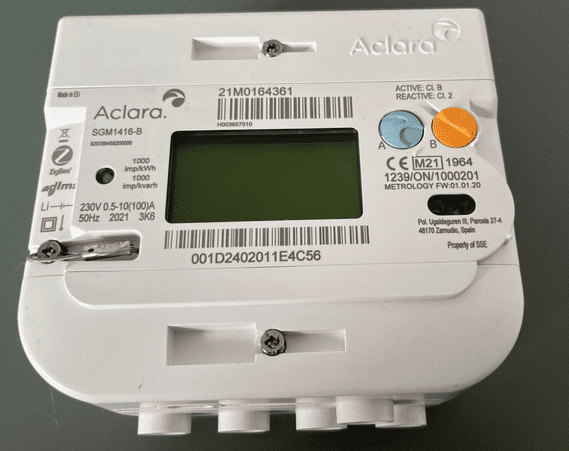

The display of Aclara electric meter

  1. Press A to wake up the screen.
  2. Continue to press 'A' to cycle through the different options until you see 'Total Active Import'.
  3. Once you get to this option, you should be able to see your electricity reading.

    To take an export reading from your Aclara SMETS2 electricity meter:
  4. Press the B button to wake the screen up.
  5. After the screen lights up, press the B button several times until you see a message that starts with either ‘Total’ or ‘TOU’.
  6. Press the A button several times until you see ‘Total Active Export’ - this screen will show your export reading in kWh.

Aclara SMETS2 gas meter

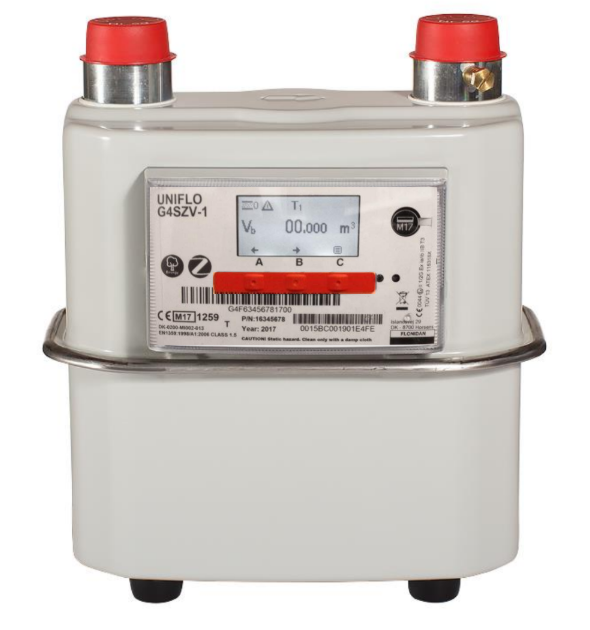

The display of an Aclara gas meter
  1. Press the middle button once to wake up the screen. This should automatically reveal your gas reading.

Landis and Gyr SMETS2 meters:

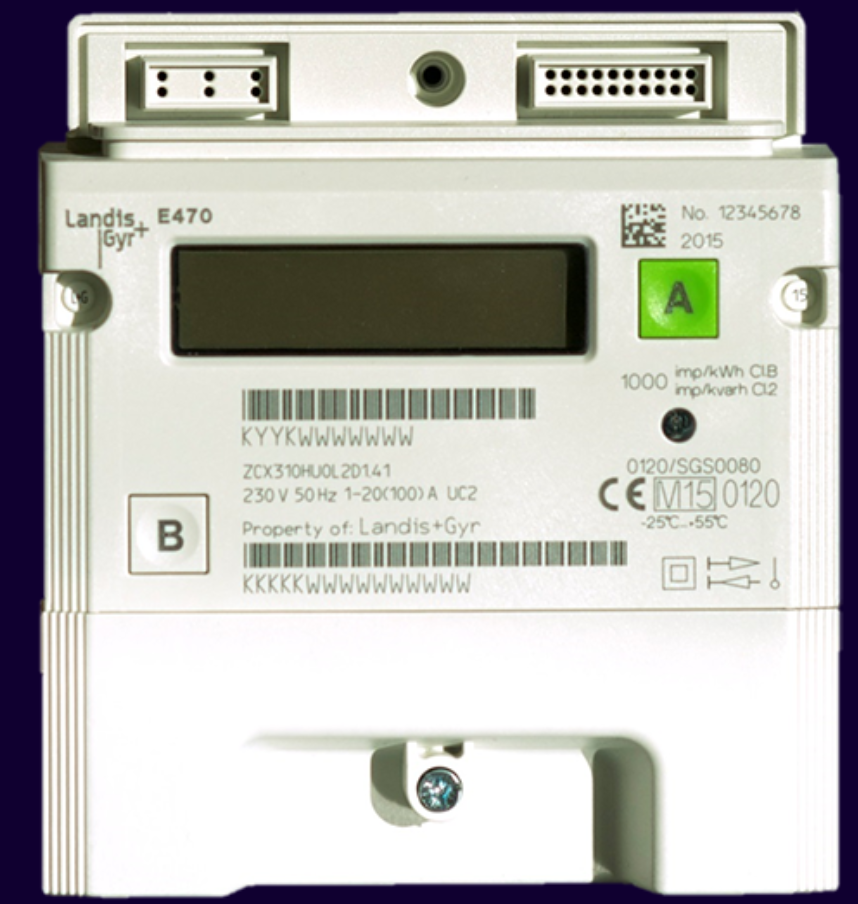

A meter display of Landis SMETS2 meter reader

Landis and Gyr SMETS2 meters:

  1. Press 'B' to light the screen up. You should be given the option for a meter boost.
  2. Press 'A' to select 'No', and then you should be able to see your electricity reading.

To take two rate meter readings from your Landis and Gyr SMETS2 electricity meter:

  1. The screen will start showing your first (R01) reading
  2. Press B to light up the screen
  3. Hold B for 5-10 seconds.
  4. Press A to move to your second (R02) reading
  5. Press A again to move back to R01
  6. To see R02 again, hold B, then press A to swap between the reads again

To take an export reading from your Landis and Gyr SMETS2 electricity meter:

Your Landis + Gyr smart meter will have either:

  1. Two equal sized green A and grey B buttons, to the right of the screen
  2. A bigger green A button to the right of the screen, and a smaller black B button underneath the screen

If your meter has equal sized A and B buttons:

  • Press the A button to get to the screen that says ‘Credit mode bal’.
  • Press and hold the A button for around 2 seconds, until the screen shows the time.
  • Press the A button several more times to cycle through the meter's screens until you see your ‘Total Act Export’ reading in kWh.

If your meter has a larger green A button and a smaller black B button:

  • Press and hold the A button until the time appears.
  • Press the A button several more times to cycle through the meter's screens until you see your ‘Total Act Export’ reading in kWh.

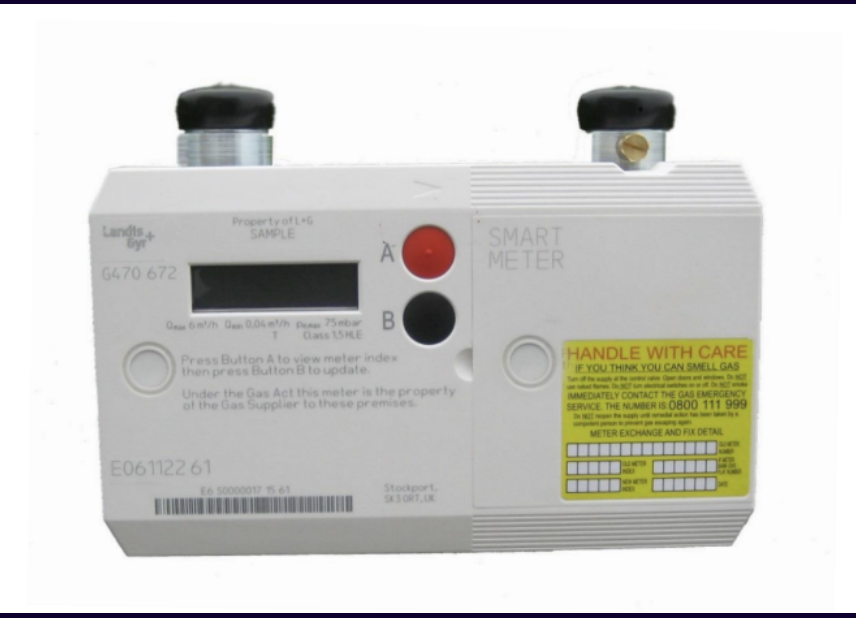

A meter display of Landis and Gyr SMETS2 Gas meter

Landis and Gyr Smets2 gas meter:

  1. Press either 'A' or 'B' to wake up the screen.
  2. This should automatically come up with your gas reading.

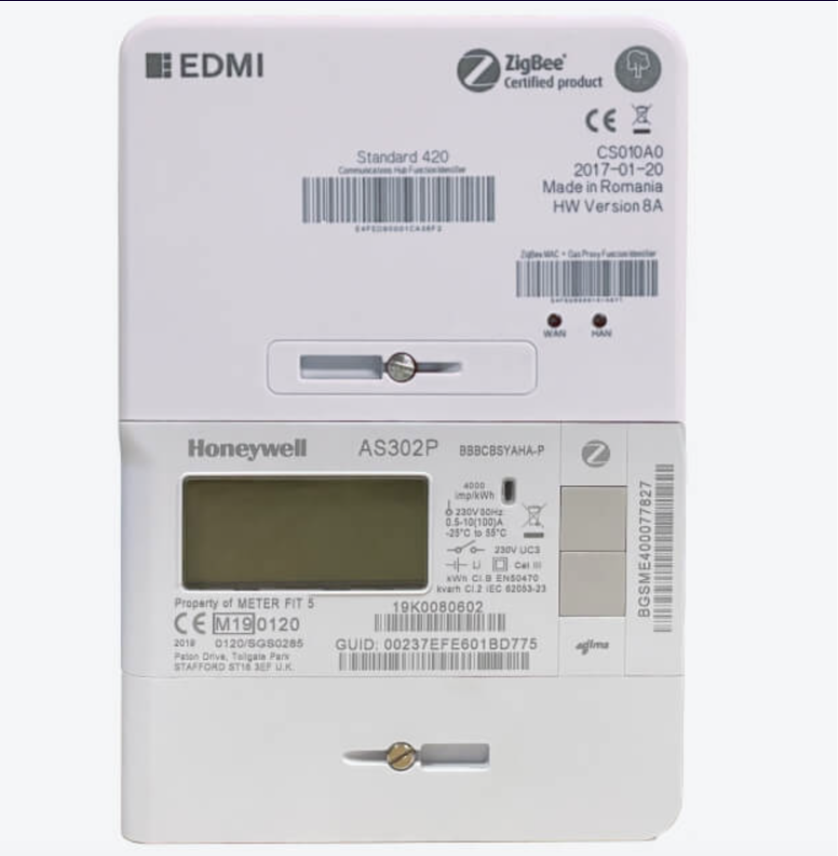

A meter display of Elster Honeywell AS302P SMETS2 meter

ELSTER/Honeywell AS302P SMETS2 meter:

  1. First locate the two grey buttons on the right side of the display.
  2. Press the top button “A” to wake up the display backlight and display the ‘General’ menu
  3. Push the bottom button “B” to scroll through menu options: ‘General’, then ‘Boost’, and then ‘Registers’ menus will be displayed
  4. Select the ‘Registers’ menu by pressing button A
  5. Push button B to scroll through menu options: ‘Cumulative’, then ‘Rates in Use’, and then ‘Rates 1-48’ menus will be displayed
  6. Select the ‘Rates 1-48’ menu by pressing button A
  7. Use the push button B to scroll through menu options: ‘Imp. R1’ and select by pressing button A. This is your single rate meter reading

To take two rate meter readings from your ELSTER/Honeywell AS302P SMETS2 electricity meter:

  • Press the top button “A” to wake up the display backlight and display the ‘General’ menu
  • Push the bottom button “B” to scroll through menu options: ‘General’, then ‘Boost’, and then ‘Registers’ menus will be displayed
  • Select the ‘Registers’ menu by pressing button A
  • Push button B to scroll through menu options: ‘Cumulative’, then ‘Rates in Use’, and then ‘Rates 1-48’ menus will be displayed
  • Select the ‘Rates 1-48’ menu by pressing button A
  • Use the push button B to scroll through menu options: ‘Imp. R1’ then ‘Imp. R2’ and select by pressing button A. This is your two rate meter reading

To take an export reading from your ELSTER/Honeywell AS302P SMETS electricity meter:

  • Press the top button “A” to wake up the display backlight and display the ‘General’ menu
  • Push the bottom button “B” to scroll through menu options: ‘General’, then ‘Boost’, and then ‘Registers’ menus will be displayed
  • Select the ‘Registers’ menu by pressing button A
  • Push button B to scroll through menu options: ‘Cumulative’
  • Select the ‘Cumulative’’ menu by pressing button A. It should show your ‘Import’
  • Push button B to scroll through menu options until you see ‘Export’ in kWh. This ‘Cum. Exp.’ figure is your solar export reading

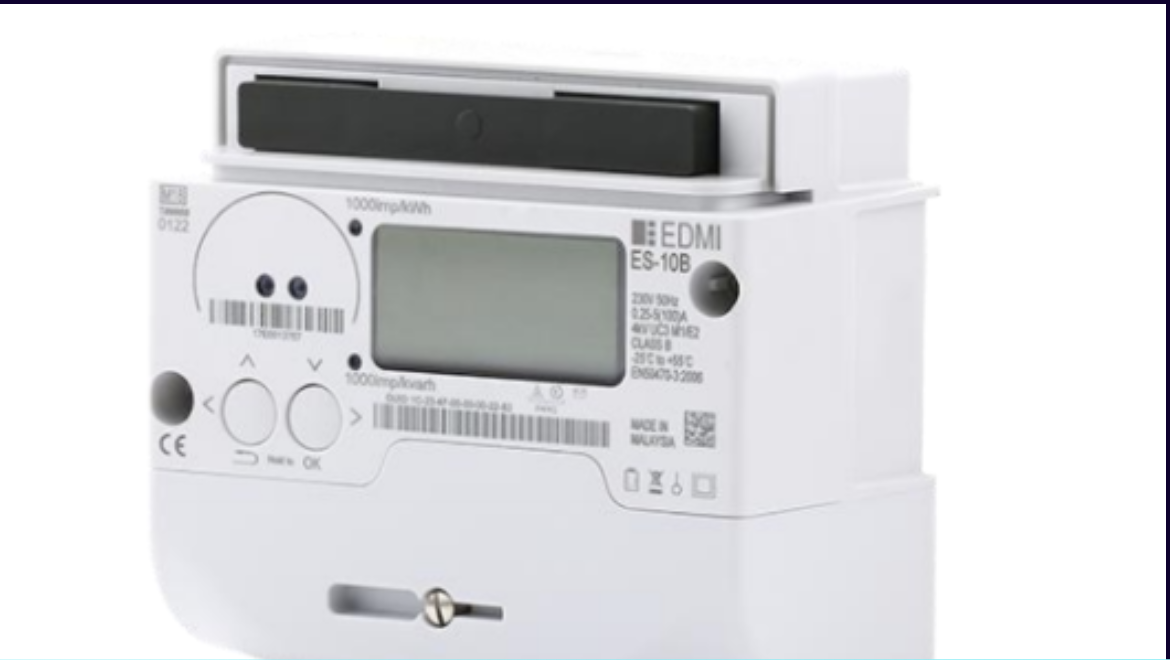

A meter display of EDMI SMETS2 smart meter

EDMI SMETS2 electric meter:

Your EDMI SMETS2 electricity meter should auto-display your meter reading on the main screen (It will revert back to this screen if you do not press any buttons 1 minute).

To take two rate meter readings from your EDMI SMETS2 electricity meter:

  1. Hold OK until it enters the ‘Main Menu’, you will see ‘Billing’ appear
  2. Hold OK to enter the ‘Billing’ sub-menu
  3. Using the arrows, scroll to ‘Advancd’ (2 pushes of the > button)
  4. Hold OK to enter the ‘Advanced’ sub-menu, you will see ‘TOUmtrx’ appear
  5. Hold OK to enter the ‘TOUmatrx’ sub-menu, you will see ‘RATE1’ appear
  6. Use the arrows to cycle the rates you need to submit (Rate 1, Rate 2, …)

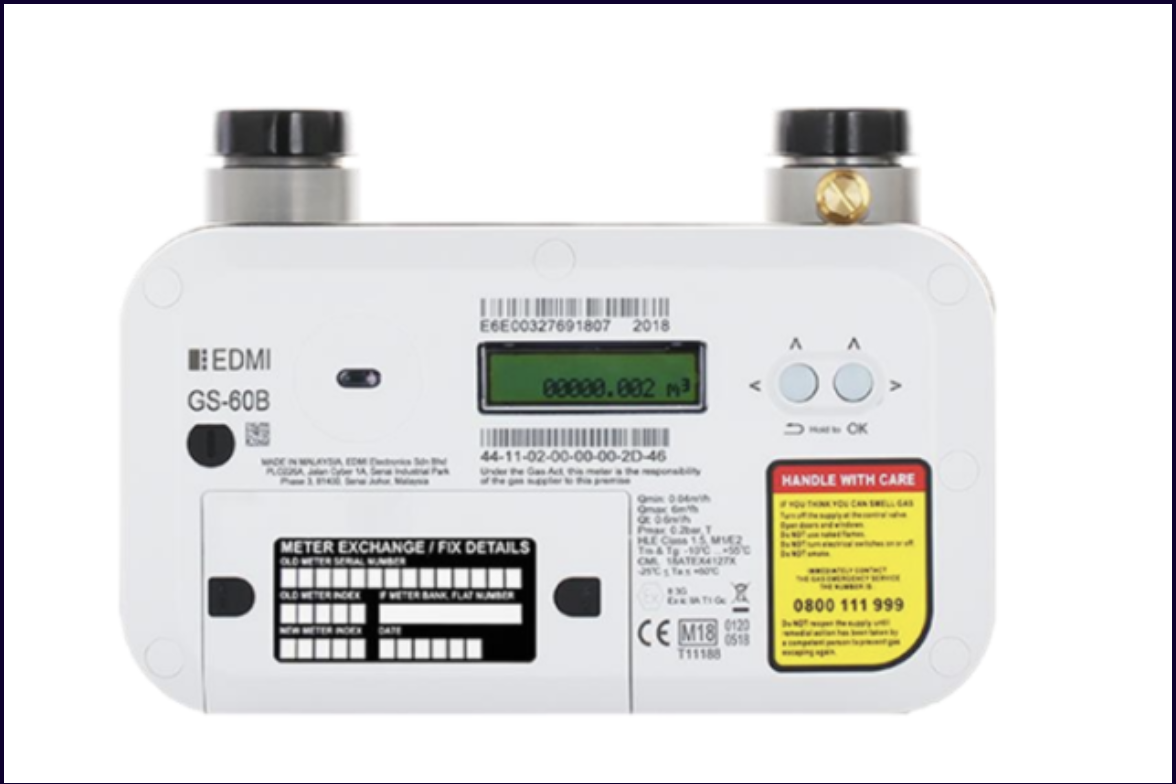

A meter display of EDMI SMETS2 gas meter

EDMI SMETS2 gas meter:

Your EDMI gas meter should auto-display your meter readings. If the screen has gone to sleep:

  1. Press the button on the right to wake up the meter screen.
  2. You should see the words 'Consumption in M³, and a number which is your meter reading. T
  3. The display will automatically cycle through other screens, but this first one is your reading.

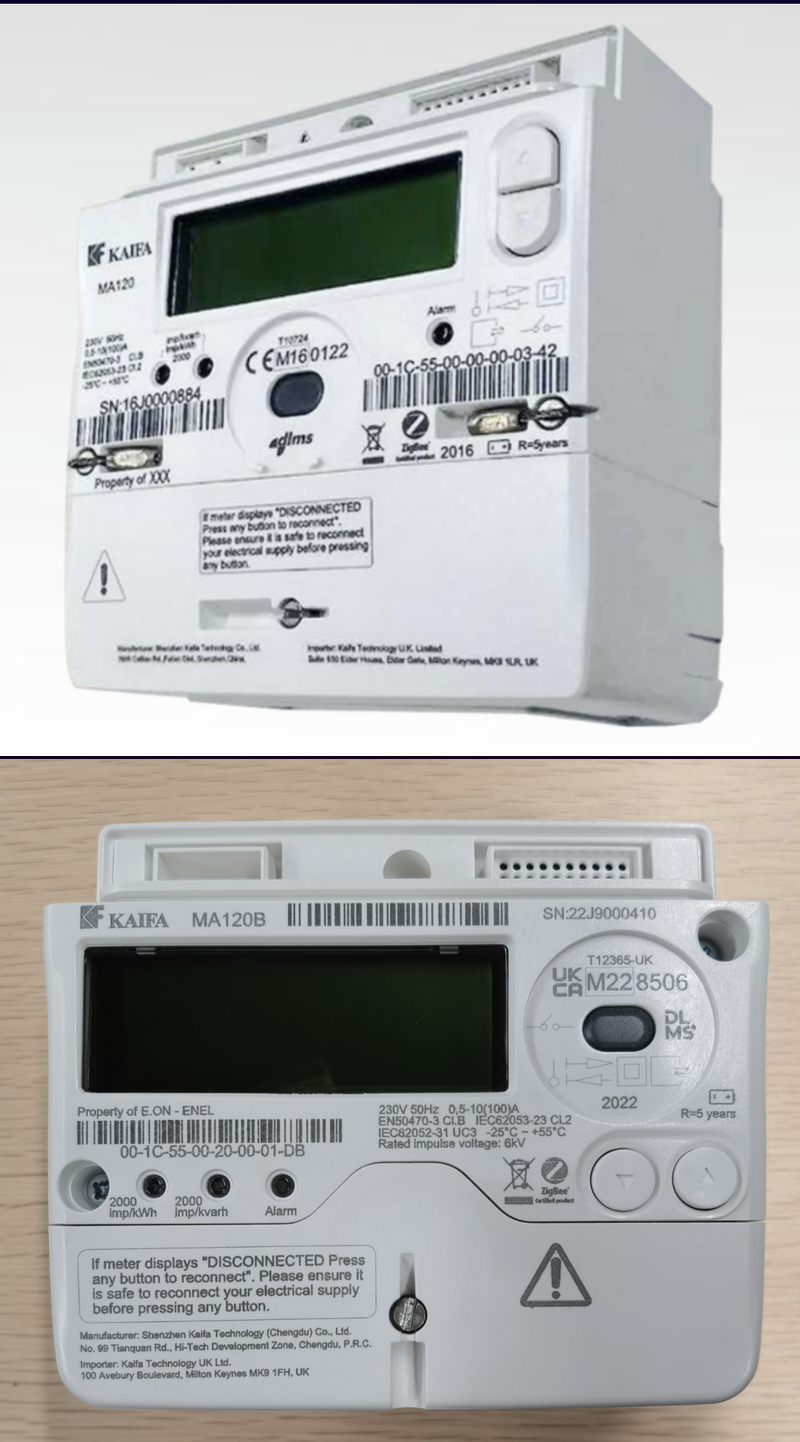

A meter display of Kaifa MA120 SMETS2 Electric Meter

Kaifa MA120 SMETS2 Electric Meter:

This meter does not require 'waking up' and uses a default auto scroll mode, cycling through its four screens. It will cycle through to the screen with your meter reading on automatically.

To take two rate meter readings from your Kaifa SMETS2 electricity meter:

  • Press the top button (K1) to enter the menu system.
  • With the arrow next to General Display, press and hold the top button (K1).
  • Then press the bottom button (K2) to scroll down to Tariff Matrix. With the arrow next to Tariff Matrix, press and hold the top button (K1).
  • With the arrow next to TOU Register, press and hold the top button (K1). T01 shows the total for R1, T02 shows the total for R2. T03 and 4 shows the unused Rate band.

To take an export reading from your Kaifa SMETS2 electricity meter:

  • Your meter will automatically switch between 4 different screens - you don’t need to push any buttons.
  • Your export reading is on the screen that shows ‘-A value’ in kWh.

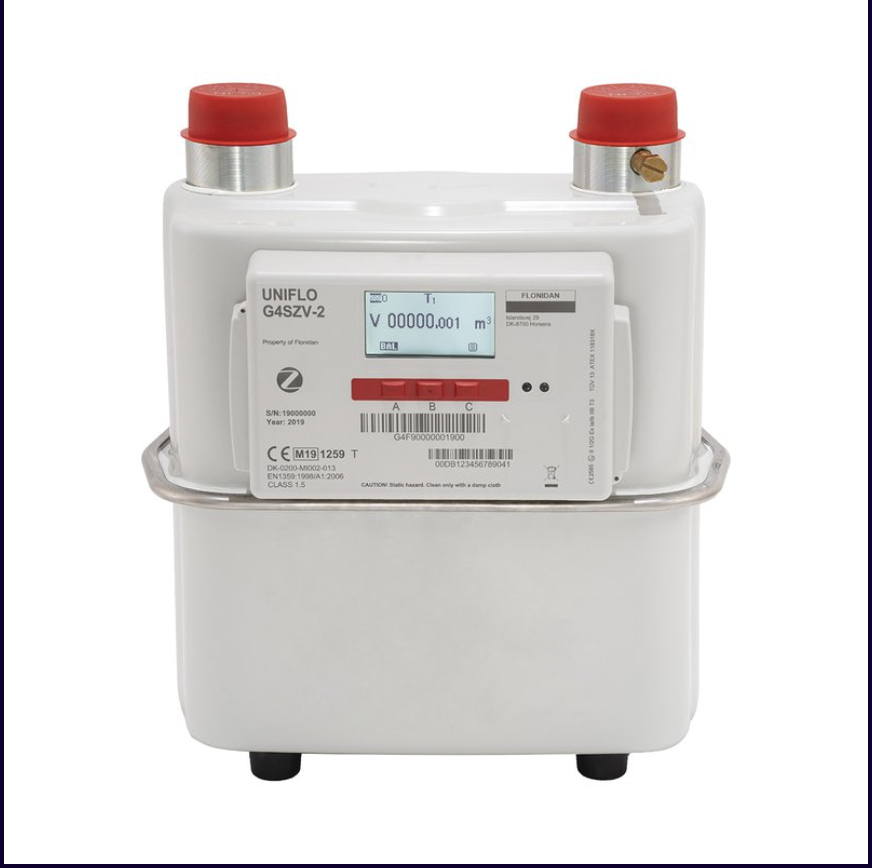

A meter display of Flonidan G4SZV SMETS2 gas meter

Flonidan G4SZV SMETS2 gas meter:

  1. When reading your Flonidan smart gas meter, your meter reading should be displayed automatically on the default screen.
  2. It should be a number preceded by a large 'V' and followed by 'm3' If you have cycled off that screen.
  3. You can use the 'left' and 'centre' push buttons beneath the screen to cycle back to it.

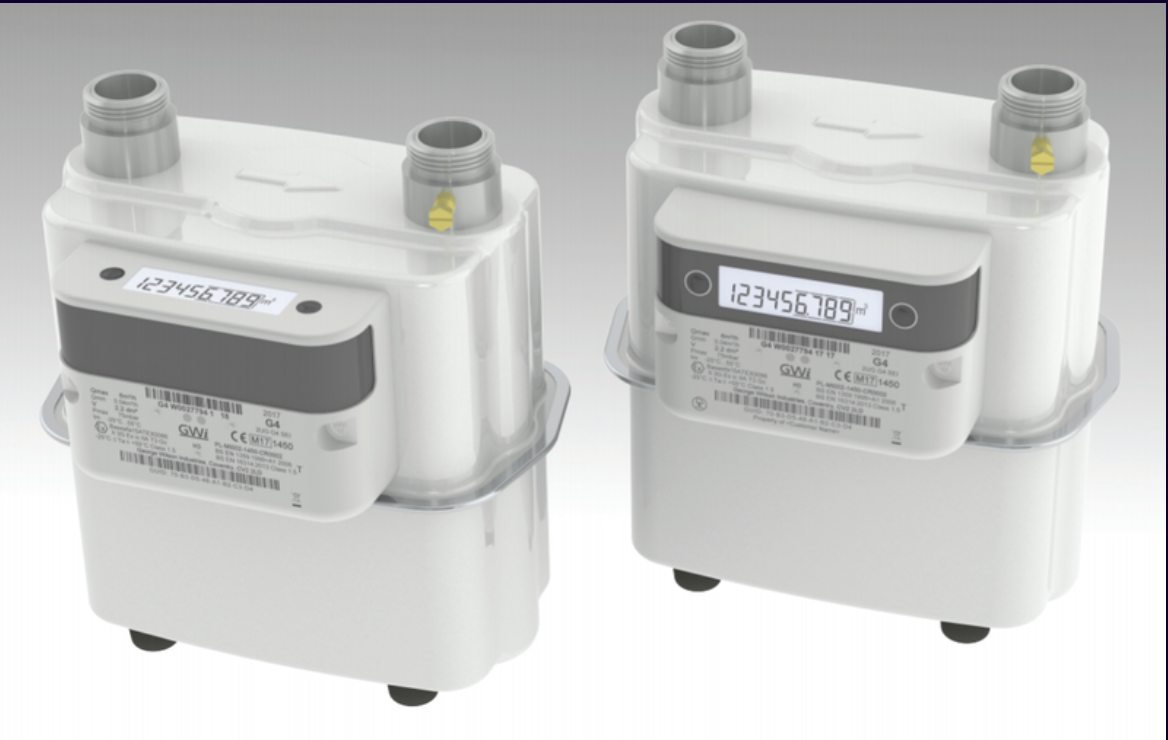

A meter display of G4 Metrix GWi smart electronic gas meter

G4 Metrix GWi smart electronic gas meter:

  1. Press the right-hand side button twice in quick succession to access the manual scroll sequence.
  2. Windows '02' displays the meter reading

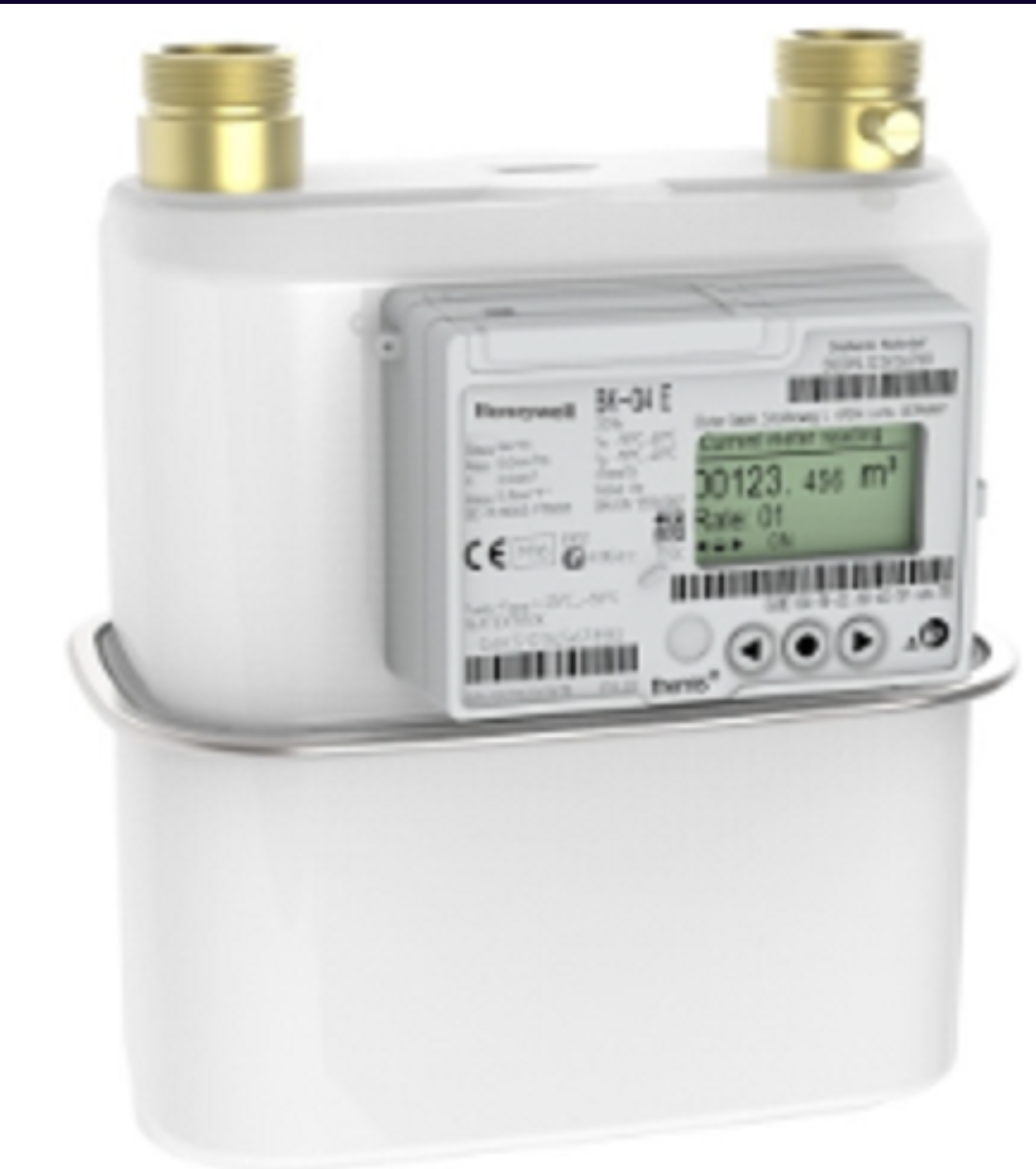

A meter display of Honeywell/Elster SMETS2 gas meter

Honeywell/Elster SMETS2 Gas Meter:

The reading will be on the screen, if the display has gone to sleep mode, press any button to get the reading which will be shown on the display.

Traditional meters

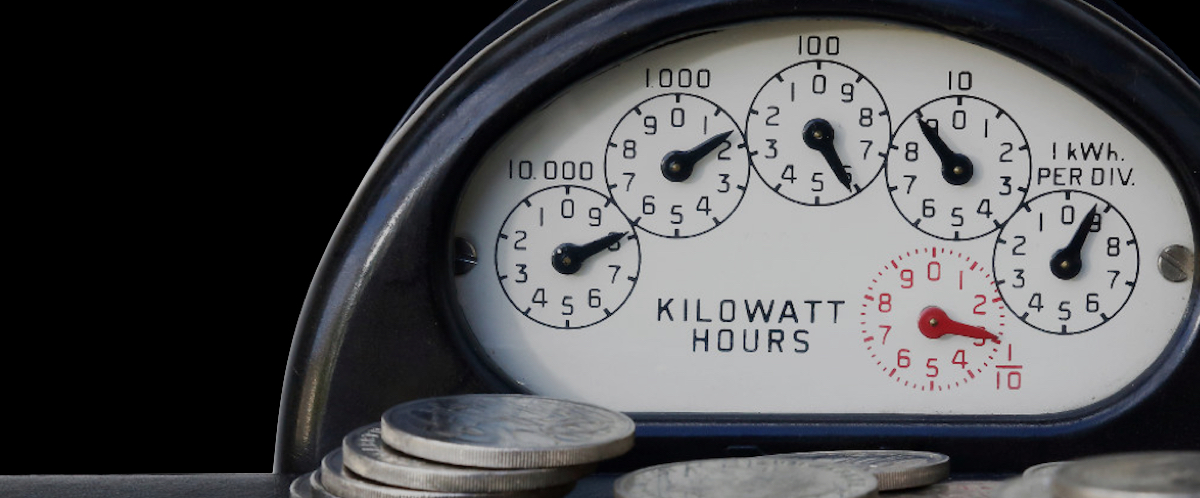

Traditional dial meter with 5 dials

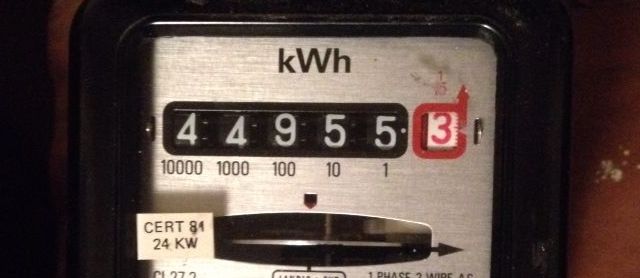

Traditional analogue meter

How to read a traditional analogue meter

Electricity Meters

Digital single meter

Looks like this:

An image of a meter reading on an analogue meter, with 5 white digits and 1 red digit

How to read:

Write down the five numbers as they appear. Ignore the red one.

Digital dual meter

Looks like this:

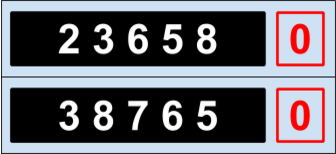

An image of a digital dual electricity meter, with two sets of six figures stacked on top of one another

This is for those of you on two energy rates for different times of the day. The cheaper one is on top.

How to read:

Write down the five numbers as they appear, ignoring the red ones.

Digital dual meter (single display)

Looks like this:

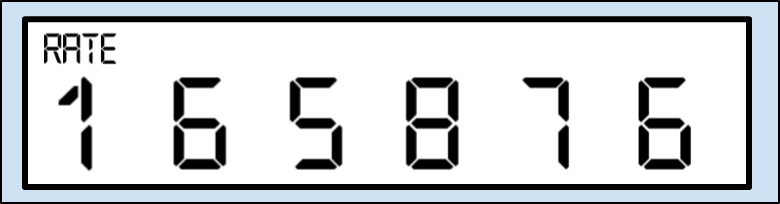

An image of a single display digital dual meter, with 6 figures

Some dual meters have a single display where you might have to press a button to view each rate.

How to read:

  1. Write down the numbers as they appear.
  2. Press the button to see the next reading, then write that down too.

Dial meter

Looks like this:

An image of a dial meter with six dials labelled one to 9

Here you’ll see five dials, each with numbers 0 to 9. There may be a sixth dial on the right, sometimes in red, or with 1/10 next to it – ignore this.

How to read:

  1. Write down the numbers the pointer has just passed, from left to right.
  2. If the pointer lies exactly on any number, underline it (in the above example, you would underline the 4).
  3. Now, look at your five numbers. For any that are underlined, look at the number following it – if it’s between 9 and 0, reduce your underlined number by one. The above example would therefore be 1 3 9 7 0.

Gas

Like electricity, there are a few different types of gas meter, but they’re all fairly simple to read.

Digital imperial meter

Looks like this:

A digital imperial meter, with 4 white digits and one red digit

How to read:

Write down the first four numbers as they appear. Ignore the red ones.

Digital metric meter

Looks like this:

A digital metric gas meter, with 8 numbers (three after a decimal point)

How to read:

Write down the first five numbers as they appear – ignore the numbers after the decimal point (sometimes in red).

Dial meter

Looks like this:

A gas dial meter with four dials

Why do I have to give a meter reading?

×

If you’ve got a traditional analogue energy meter (not a smart one), you’ll need to send in regular meter readings so we can work out how much energy you’re using. Smart meters remove the need for meter readings (they send readings to us automatically - register your interest in a smart meter and we'll be in touch when engineers are available in your area) but there are a handful of situations where you might still need to take a manual meter reading from your smart meter.

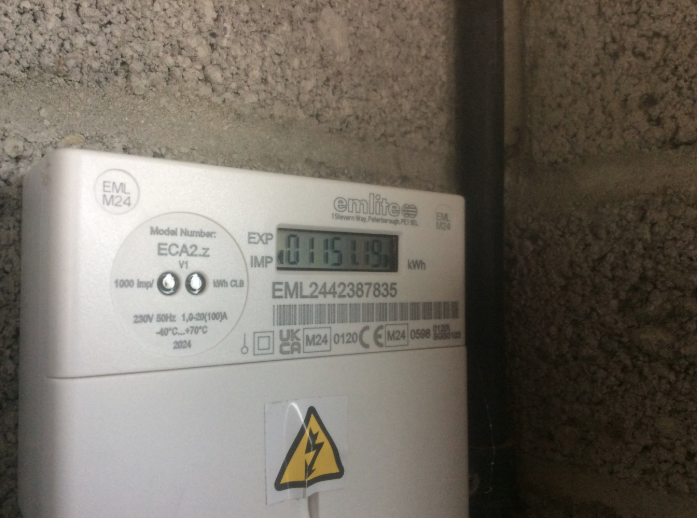

If you're on one of our export tariffs, you'll have to provide 'export readings' from your SMETS1 or SMETS2 meter (not your generation meter, or your In-Home Display) so we can calculate your export payments. Below, in our guides to taking readings from SMETS1 and SMETS2 meters, we'll also explain how to take export readings from a range of different meters. If you're meter isn't included on the list, don’t hesitate to get in touch.

Electricity and gas meters come in several different shapes and sizes, so before we can tell you how to read your meter, it’s important to work out which type of meter you have.

Screenshot 2024-10-01 at 15.26.58


We understand that meter readings can sometimes be a little fiddly, so if you need a hand, don’t hesitate to get in touch!

Published on 27th February 2025 by:

image of Jackson Howarth

Jackson Howarth

Senior Writer

Back to Blog More on Energy explained

Hey I'm Constantine, welcome to Octopus Energy!

×
